RAID 0以外のRAIDモードで使用中のドライブを交換する

RAID 0以外のRAIDモードで使用中のドライブが故障した場合、故障したドライブの交換後、RAIDアレイを修復する作業が必要です。

故障したドライブを交換するには、以下の手順を行ってください。

1 故障したドライブを交換する前に本製品に保存されているデータを別のドライブにバックアップします。

交換作業中に別のドライブが故障しデータが取り出せなくなる可能性があるため、データは事前に必ずバックアップしてください。

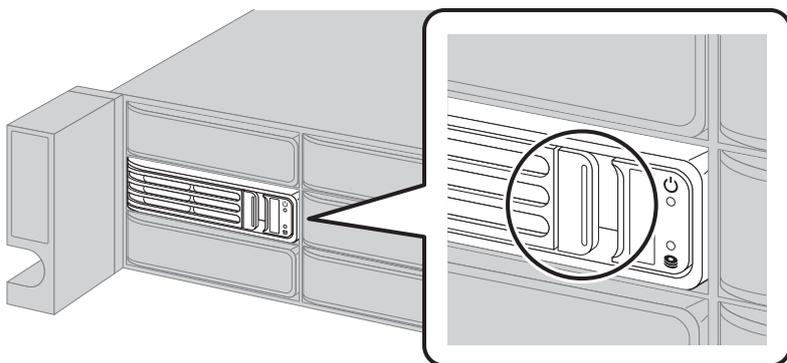

2 ドライブエラーランプが赤色に点灯しているドライブのつまみを押します。

本製品の電源がOFFの場合は、故障したドライブの番号を、メール通知機能で送信されたメールで確認してください。

Diagram showing the drive bays of a RAID unit. A circular callout highlights a specific drive bay where the error lamp is lit up in red, indicating a drive that needs to be replaced.
Diagram showing the drive bays of a RAID unit. A circular callout highlights a specific drive bay where the error lamp is lit up in red, indicating a drive that needs to be replaced.

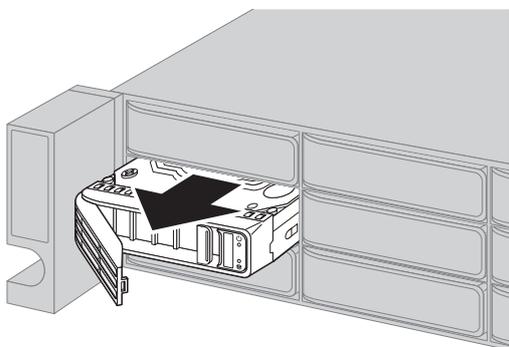

3 カートリッジごとドライブを手前に引き出し、抜きます。

Diagram showing a drive being pulled out from its bay. A large black arrow points to the handle on the front of the drive, indicating the direction to pull it out.
Diagram showing a drive being pulled out from its bay. A large black arrow points to the handle on the front of the drive, indicating the direction to pull it out.

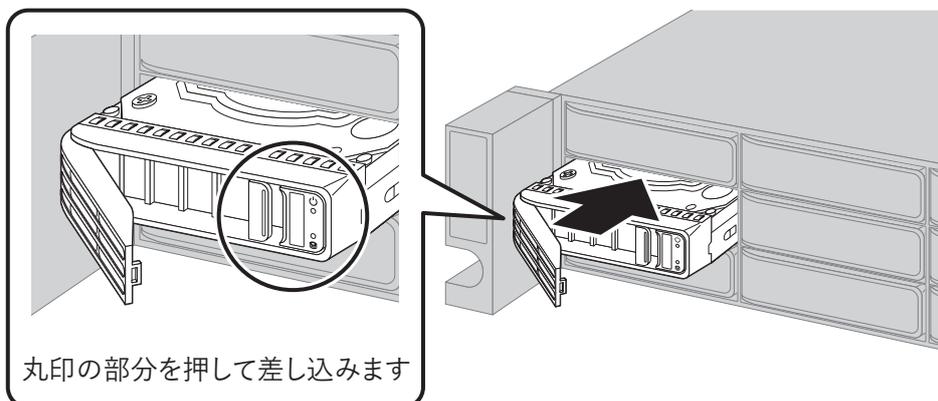

4 別売のドライブを、取っ手が開いた状態で空のスロットに差し込みます。

Diagram showing a new drive being inserted into an empty bay. A circular callout on the left shows a close-up of the drive's handle, with a circle highlighting the latch area. A large black arrow on the right points to the drive being pushed into the bay. Below the callout, the text '丸印の部分を押して差し込みます' (Push the circled part to insert) is present.
Diagram showing a new drive being inserted into an empty bay. A circular callout on the left shows a close-up of the drive's handle, with a circle highlighting the latch area. A large black arrow on the right points to the drive being pushed into the bay. Below the callout, the text '丸印の部分を押して差し込みます' (Push the circled part to insert) is present.

丸印の部分を押して差し込みます
